D6-7-650-5-P

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Egismos Technology Corporation.

The D6-7-650-5-P from Egismos Technology Corporation is a Laser Diode with Wavelength 640 nm, 650 nm, 660 nm (Peak), Output Power 5 mW, Output Power 5 mW, Threshold Current 24 to 30 mA, Operating Current 32 to 42 mA. More details for D6-7-650-5-P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    D6-7-650-5-P
  • Manufacturer
    Egismos Technology Corporation
  • Description

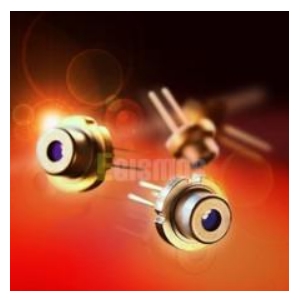

    650 nm Red Laser Diode with TO-Can Package

Applications

  • Application
    Laser Projector, Measuring equipment, Laser pointers, green lasers, blue laser DVD, laser barcode scanners, diode laser equipment, medical instruments and aerospace applications
  • Application Industry
    Aerospace, Medical, Industrial, Test & Measurement

General Parameters

  • Technology
    Multi-Quantum Well (MQW)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    640 nm, 650 nm, 660 nm (Peak)
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Beam Divergence
    6 to 12 Degree (Parallel), 22 to 38 Degree (Perpendicular)
  • Beam Divergence Parallel
    6 to 12 Degree
  • Beam Divergence Perpendicular
    22 to 38 Degree
  • Laser Gain Medium
    AlGaInP
  • Threshold Current :
    24 to 30 mA
  • Reverse Voltage
    2 V
  • Operating Current
    32 to 42 mA
  • Operating Current
    32 to 42 mA
  • Operating Voltage
    2.1 to 2.6 V
  • Monitor Current
    0.08 to 0.4 mA
  • Laser Color
    Red
  • Package Type
    TO-Can
  • Package
    5.6mm TO-Can Package

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -10 to 70 Degree C
  • Storage Temperature
    -10 to 70 Degree C
