LDPGAU1S03

Laser Diode by Excelitas Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Excelitas Technologies.

The LDPGAU1S03 from Excelitas Technologies is a Laser Diode with Wavelength 895 nm, 905 nm, 915 nm (Center), Output Power 14 to 16 W, Output Power 14 to 16 W, Threshold Current 0.75 A, Operating Current 10 A. More details for LDPGAU1S03 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDPGAU1S03
  • Manufacturer
    Excelitas Technologies
  • Description

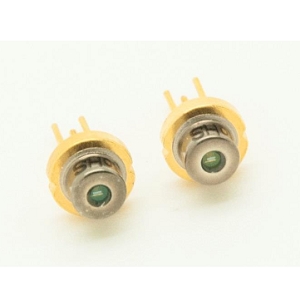

    High volume 5.6mm TO metal package laser diode “LU” series

Applications

  • Application
    LIDAR, Laser range finding, Laser-based speed enforcement, IR-illumination, Laser skin therapy

General Parameters

  • Technology
    Multi-Quantum Well (MQW)
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 nm, 905 nm, 915 nm (Center)
  • Output Power
    14 to 16 W
  • Output Power
    14 to 16 W
  • Spectral Width (FWHM)
    5 nm
  • Pulse Duration
    100 ns
  • Beam Divergence
    10 Degree (Parallel), 25 Degree (Perpendicular)
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    25 Degree
  • Wavelength Temp. Coefficient
    0.25 nm/Degree C
  • Threshold Current :
    0.75 A
  • Forward Voltage
    6.67 V
  • Peak Forward Current
    10 A
  • Reverse Voltage
    6 V
  • Operating Current
    10 A
  • Operating Current
    10 A
  • Operating Voltage
    6.67 V
  • Duty Factor
    0.001
  • Emitting Area
    75 x 5 µm
  • Series Resistance
    0.257 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    TO-5.6

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -55 to 85 Degree C
  • Storage Temperature
    -55 to 105 Degree C
