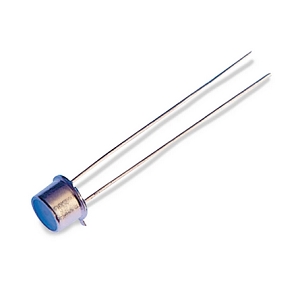

TPGAS1S09H

Laser Diode by Excelitas Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Excelitas Technologies.

The TPGAS1S09H from Excelitas Technologies is a Laser Diode with Wavelength 895 nm, 905 nm, 915 nm (Center), Output Power 70 to 75 W, Output Power 70 to 75 W, Threshold Current 1.75 A, Operating Current 30 A. More details for TPGAS1S09H can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TPGAS1S09H
  • Manufacturer
    Excelitas Technologies
  • Description
    905nm Triple-Cavity 9 mils PLD

Applications

  • Application
    Laser range finding, Laser safety curtains (laser scanning), Infrared night illumination, Laser speed measurement, (LIDAR), Automotive adaptive cruise control (ACC), Material excitation in medical and other analytical applications, Weapon simulation

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 nm, 905 nm, 915 nm (Center)
  • Output Power
    70 to 75 W
  • Output Power
    70 to 75 W
  • Spectral Width (FWHM)
    5 nm
  • Pulse Duration
    1 µs
  • Beam Divergence
    10 Degree (Parallel), 25 Degree (Perpendicular)
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    25 Degree
  • Wavelength Temp. Coefficient
    0.25 nm/Degree C
  • Threshold Current :
    1.75 A
  • Peak Forward Current
    30 A
  • Reverse Voltage
    2 V
  • Operating Current
    30 A
  • Operating Current
    30 A
  • Duty Factor
    0.001
  • Emitting Area
    225 x 10 µm
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can, Sub-Mount, Coaxial Pigtailed
  • Package
    TO-5.6, TO-9, Sub-Mount, Coaxial Pigtailed

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -55 to 85 Degree C
  • Storage Temperature
    -55 to 105 Degree C
