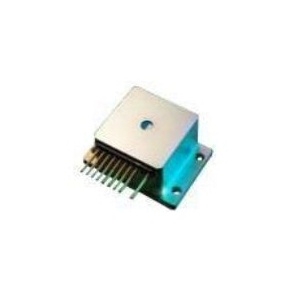

FB-M1600-500HO

Laser Diode by Fibercom Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fibercom Ltd..

The FB-M1600-500HO from Fibercom Ltd. is a Laser Diode with Wavelength 1600 nm, Output Power 500 mW, Output Power 500 mW, Threshold Current 0.6 A, Operating Current 2500 mA. More details for FB-M1600-500HO can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FB-M1600-500HO
  • Manufacturer
    Fibercom Ltd.

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, QCW Laser, Pulse Laser
  • Wavelength
    1600 nm
  • Output Power
    500 mW
  • Output Power
    500 mW
  • Spectral Width (FWHM)
    6 nm
  • Configuration
    Multi-Emitter
  • Beam Divergence Parallel
    15 Degree
  • Beam Divergence Perpendicular
    1 Degree
  • Wavelength Tolerance
    ±20 nm
  • Wavelength Temp. Coefficient
    4 Angstrom/degree
  • Threshold Current :
    0.6 A
  • Operating Current
    2500 mA
  • Operating Current
    2500 mA
  • Reverse Voltage(PD)
    9 V
  • Operating Voltage
    1.2 V
  • Monitor Current
    1 to 1000 µA
  • Emitting Area
    100 x 1 µm x µm
  • Fiber Modes
    Multi-Mode
  • Package Type
    HHL
  • Package
    HHL w/window

Temperature

  • Operating Temperature
    -20 to 40 Degree C
  • Storage Temperature
    -40 to 80 Degree C
