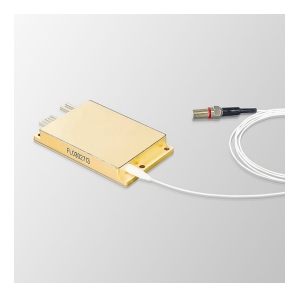

FL-E7-65-938-105

Laser Diode by Focuslight Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Focuslight Technologies.

The FL-E7-65-938-105 from Focuslight Technologies is a Laser Diode with Wavelength 938 nm (Centroid), Output Power 65 W, Output Power 65 W, Output Power (CW) 65 W, Threshold Current 0.7 A. More details for FL-E7-65-938-105 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FL-E7-65-938-105
  • Manufacturer
    Focuslight Technologies
  • Description
    938 nm High Power Fiber Coupled Diode Laser

Applications

  • Application
    Advanced Manufacturing, Health, Information Technology, Scientific Research

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    938 nm (Centroid)
  • Output Power
    65 W
  • Output Power
    65 W
  • Output Power (CW)
    65 W
  • Spectral Width (FWHM)
    <6 nm
  • Slope Efficiency
    >5.6 W/A
  • Wavelength Tolerance
    ±5 nm
  • Power Conversion Efficiency
    >49%
  • Threshold Current :
    0.7 A
  • Operating Current
    11.5 A
  • Operating Current
    11.5 A
  • Operating Voltage
    14 V
  • Operating Current (CW)
    11.5 A
  • Cooling Method
    Conduction-Cooled
  • Laser Class
    Class IV
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Dimension
    100 x 48 x 10.5 mm
  • Fiber core diameter
    105 µm
  • Fiber length
    1.5 m
  • Weight
    0.16 kg

Connections & Interface

  • Connector
    SMA905

Temperature

  • Temperature Drift
    0.33 nm/Degree C
  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C
