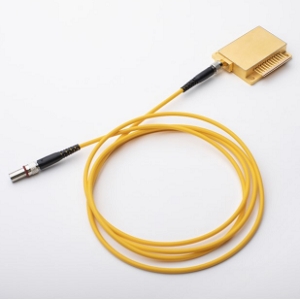

FL-FCMSE58-8-808-200

Laser Diode by Focuslight Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Focuslight Technologies.

The FL-FCMSE58-8-808-200 from Focuslight Technologies is a Laser Diode with Wavelength 808 nm (Centroid), Output Power 8 W, Output Power 8 W, Output Power (CW) 8 W, Threshold Current 1.8 A. More details for FL-FCMSE58-8-808-200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FL-FCMSE58-8-808-200
  • Manufacturer
    Focuslight Technologies
  • Description
    808 nm High Power Fiber Coupled Diode Laser

Applications

  • Application
    Advanced Manufacturing, Health, Information Technology, Scientific Research

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm (Centroid)
  • Output Power
    8 W
  • Output Power
    8 W
  • Output Power (CW)
    8 W
  • Slope Efficiency
    >0.55 to >0.8 W/A
  • Wavelength Tolerance
    ±5 nm
  • Power Conversion Efficiency
    >35%
  • Threshold Current :
    1.8 A
  • Operating Current
    10.5 A
  • Operating Current
    10.5 A
  • Operating Voltage
    2.1 V
  • Operating Current (CW)
    10.5 A
  • Cooling Method
    Conduction-Cooled
  • Laser Class
    Class IV
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Dimension
    55 x 43 x 10.6 mm
  • Fiber core diameter
    200 µm
  • Weight
    110 g

Connections & Interface

  • Connector
    SMA905

Temperature

  • Temperature Drift
    0.34 nm/Degree C
  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C

Technical Documents
