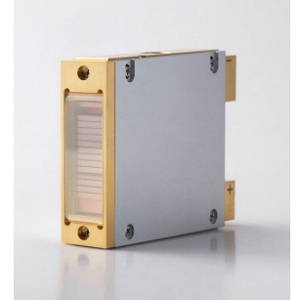

FL-VS120-15X1-7500-940-Y

Laser Diode by Focuslight Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Focuslight Technologies.

The FL-VS120-15X1-7500-940-Y from Focuslight Technologies is a Laser Diode with Wavelength 940 nm (Centroid), Output Power 500 W, Output Power 500 W, Threshold Current 35 A, Operating Current 450 A. More details for FL-VS120-15X1-7500-940-Y can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FL-VS120-15X1-7500-940-Y
  • Manufacturer
    Focuslight Technologies
  • Description
    940 nm Micro-Channel Water Cooled Vertical Stack Diode Laser

Applications

  • Application
    Pumping, Medical, Scientific Research

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    QCW Laser, Pulsed Laser
  • Wavelength
    940 nm (Centroid)
  • Output Power
    500 W
  • Output Power
    500 W
  • Spectral Width (FWHM)
    <5 to <8 nm
  • Pulse Duration
    600 µs
  • Slope Efficiency
    >1.1 W/A
  • Configuration
    Vertically Stacked
  • Beam Divergence
    <0.5 Degree (Parallel), 10 Degree (Perpendicular)
  • Beam Divergence Parallel
    0.5 Degree
  • Beam Divergence Perpendicular
    10 Degree
  • Wavelength Tolerance
    ±5 nm
  • Duty Cycle
    <8%
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.34 nm/Degree C
  • Power Conversion Efficiency
    >55%
  • Threshold Current :
    35 A
  • Operating Current
    450 A
  • Operating Current
    450 A
  • Operating Voltage
    2 V
  • Cooling Method
    Water-Cooled
  • Laser Class
    Class IV
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Vertical Stack

Temperature

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    0 to 55 Degree C
