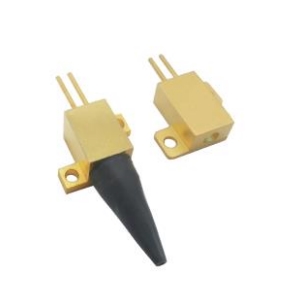

FRLD-1064-12W-FS-2Pin

Laser Diode by Frankfurt Laser Company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FRLD-1064-12W-FS-2Pin from Frankfurt Laser Company is a Laser Diode with Wavelength 1054 to 1074 nm, Output Power 12 W, Output Power 12 W, Output Power (CW) 12 W, Threshold Current 0.8 A. More details for FRLD-1064-12W-FS-2Pin can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FRLD-1064-12W-FS-2Pin
  • Manufacturer
    Frankfurt Laser Company
  • Description
    1054 to 1074 nm Multi-Mode Free Space Laser Diode in Fiber Pigtailed package

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1054 to 1074 nm
  • Output Power
    12 W
  • Output Power
    12 W
  • Output Power (CW)
    12 W
  • Spectral Width (FWHM)
    4 nm
  • Slope Efficiency
    0.9 mW/mA
  • Beam Divergence Parallel
    1 to 8 Degree
  • Beam Divergence Perpendicular
    8 to 10 Degree
  • Transverse Mode
    TE
  • Threshold Current :
    0.8 A
  • Reverse Voltage
    2.5 V
  • Operating Current
    12 A
  • Operating Current
    12 A
  • Operating Voltage
    1.9 V
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    Fiber Pigtailed
  • Relative Humidity
    75% (Operating), 90% (Storage)

Temperature

  • Temperature Drift
    0.3 nm/Degree C
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
