FRLD-1064-800-FS-VBG-8Pin

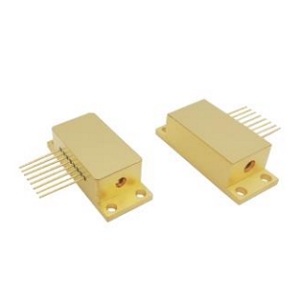

Laser Diode by Frankfurt Laser Company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FRLD-1064-800-FS-VBG-8Pin from Frankfurt Laser Company is a Laser Diode with Wavelength 1063.5 to 1064.5 nm, Output Power 800 mW, Output Power 800 mW, Output Power (CW) 800 mW, Threshold Current 0.2 A. More details for FRLD-1064-800-FS-VBG-8Pin can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FRLD-1064-800-FS-VBG-8Pin
  • Manufacturer
    Frankfurt Laser Company
  • Description
    1063.5 to 1064.5 nm Volume Bragg Grating (VBG) Free Space Laser Diode

Applications

  • Application
    Medical, Spectrum Analysis, Scientific Research

General Parameters

  • Technology
    Volume Bragg Grating (VBG)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1063.5 to 1064.5 nm
  • Output Power
    800 mW
  • Output Power
    800 mW
  • Output Power (CW)
    800 mW
  • Spectral Width (FWHM)
    0.1 nm
  • Slope Efficiency
    0.6 W/A
  • Threshold Current :
    0.2 A
  • Forward Current(PD)
    2000 µA
  • Operating Current
    1.5 A
  • Operating Current
    1.5 A
  • Operating Voltage
    1.8 V
  • Thermistor Resistance
    10 kOhms
  • Laser Class
    Class 3B, Class 4
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    HHL
  • Relative Humidity
    75% (Operating), 90% (Storage)

Temperature

  • Temperature Drift
    0.01 nm/Degree C
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
