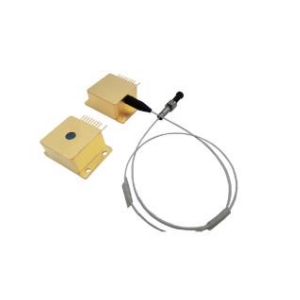

FRLD-808-10W-FS-9Pin

Laser Diode by Frankfurt Laser Company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FRLD-808-10W-FS-9Pin from Frankfurt Laser Company is a Laser Diode with Wavelength 798 to 818 nm, Output Power 10 W, Output Power 10 W, Output Power (CW) 10 W, Threshold Current 1.4 A. More details for FRLD-808-10W-FS-9Pin can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FRLD-808-10W-FS-9Pin
  • Manufacturer
    Frankfurt Laser Company
  • Description
    798 to 818 nm Multi-Mode Free Space Laser Diode in HHL Pigtail package

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    798 to 818 nm
  • Output Power
    10 W
  • Output Power
    10 W
  • Output Power (CW)
    10 W
  • Spectral Width (FWHM)
    4 nm
  • Slope Efficiency
    1 W/A
  • Beam Divergence Parallel
    1 to 8 Degree
  • Beam Divergence Perpendicular
    8 to 10 Degree
  • Transverse Mode
    TE
  • Threshold Current :
    1.4 A
  • Forward Current(PD)
    2000 µA
  • Operating Current
    11 A
  • Operating Current
    11 A
  • Operating Voltage
    1.9 V
  • Thermistor Resistance
    10 kOhms
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    HHL Pigtail
  • Relative Humidity
    75% (Operating), 90% (Storage)

Temperature

  • Temperature Drift
    0.3 nm/Degree C
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
