FWSL-1064-3W-C-MM

Laser Diode by Frankfurt Laser Company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FWSL-1064-3W-C-MM from Frankfurt Laser Company is a Laser Diode with Wavelength 1064 nm, Output Power 3 W, Output Power 3 W, Threshold Current 0.3 to 0.5 A, Operating Current 3.6 to 4 A. More details for FWSL-1064-3W-C-MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FWSL-1064-3W-C-MM
  • Manufacturer
    Frankfurt Laser Company
  • Description

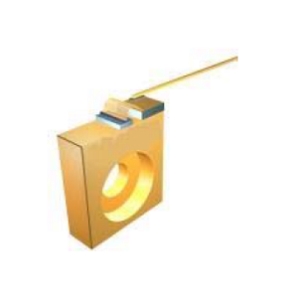

    1064 nm Multi-Mode Free Space Laser Diode in C-Mount package

Applications

  • Application
    Medical Laser Treatment, Night Version

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm
  • Output Power
    3 W
  • Output Power
    3 W
  • Spectral Width (FWHM)
    4 nm
  • Slope Efficiency
    0.9 mW/mA
  • Beam Divergence Parallel
    8 to 10 Degree
  • Beam Divergence Perpendicular
    32 to 42 Degree
  • Wavelength Temp. Coefficient
    0.4 nm/Degree C
  • Threshold Current :
    0.3 to 0.5 A
  • Reverse Voltage
    2 V
  • Operating Current
    3.6 to 4 A
  • Operating Current
    3.6 to 4 A
  • Operating Voltage
    1.7 to 2 V
  • Laser Color
    Infrared
  • Emitting Area
    100 x 1 µm
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    C-Mount

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C
