FWSL-1330-1W-C-MM

Laser Diode by Frankfurt Laser Company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FWSL-1330-1W-C-MM from Frankfurt Laser Company is a Laser Diode with Wavelength 1330 nm, Output Power 1 W, Output Power 1 W, Threshold Current 350 mA, Operating Current 2.1 to 2.4 A. More details for FWSL-1330-1W-C-MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FWSL-1330-1W-C-MM
  • Manufacturer
    Frankfurt Laser Company
  • Description

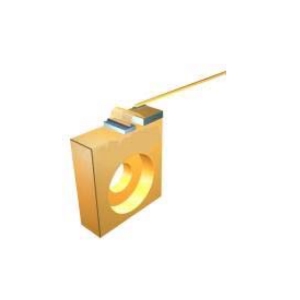

    1330 nm Multi-Mode Free Space Laser Diode in C-Mount package

Applications

  • Application
    Medical Laser Treatment

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1330 nm
  • Output Power
    1 W
  • Output Power
    1 W
  • Spectral Width (FWHM)
    6 to 10 nm
  • Slope Efficiency
    0.55 W/A
  • Beam Divergence Parallel
    28 Degree
  • Beam Divergence Perpendicular
    8 Degree
  • Wavelength Tolerance
    ±10 to ±30 nm
  • Wavelength Temp. Coefficient
    0.7 nm/Degree C
  • Threshold Current :
    350 mA
  • Reverse Voltage
    2 V
  • Operating Current
    2.1 to 2.4 A
  • Operating Current
    2.1 to 2.4 A
  • Operating Voltage
    1.3 to 1.5 V
  • Laser Color
    Infrared
  • Emitting Area
    85 x 1 µm
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    C-Mount

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C
