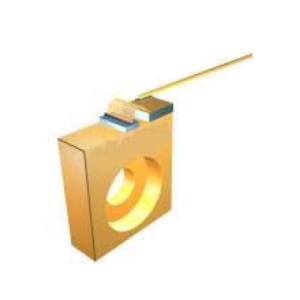

FWSL-770-5W-C-MM

Laser Diode by Frankfurt Laser Company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Frankfurt Laser Company.

The FWSL-770-5W-C-MM from Frankfurt Laser Company is a Laser Diode with Wavelength 770 nm, Output Power 5 W, Output Power 5 W, Threshold Current 1.2 A, Operating Current 5.5 A. More details for FWSL-770-5W-C-MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FWSL-770-5W-C-MM
  • Manufacturer
    Frankfurt Laser Company
  • Description
    770 nm Multi-Mode Free Space Laser Diode in C-Mount package

Applications

  • Application
    Medical Laser Treatment, Sensing

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    770 nm
  • Output Power
    5 W
  • Output Power
    5 W
  • Spectral Width (FWHM)
    2 nm
  • Slope Efficiency
    1.2 W/A
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    35 Degree
  • Wavelength Tolerance
    ±10 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    1.2 A
  • Reverse Voltage
    2 V
  • Operating Current
    5.5 A
  • Operating Current
    5.5 A
  • Operating Voltage
    2 V
  • Laser Color
    Infrared
  • Emitting Area
    150 x 1 µm
  • Fiber Modes
    Multi-Mode
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    C-Mount

Temperature

  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 80 Degree C
