L11348-307-05

Laser Diode by Hamamatsu Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The L11348-307-05 from Hamamatsu Photonics is a Laser Diode with Wavelength 860 nm, 870 nm, 880 nm, Threshold Current 0.5 A, Operating Current 10 A, Operating Current 10 A, Operating Voltage 13 to 16 V. More details for L11348-307-05 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L11348-307-05
  • Manufacturer
    Hamamatsu Photonics
  • Description

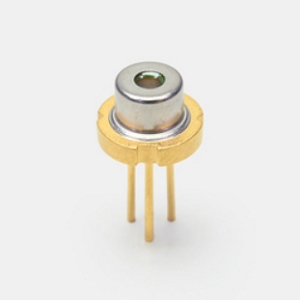

    860 to 880 nm Pulsed Laser Diode with TO-Can Package

Applications

  • Application
    Laser Range finder, Security, Measuring Instruments

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    860 nm, 870 nm, 880 nm
  • Spectral Width (FWHM)
    6 to 10 nm
  • Pulse Duration
    50 to 100 ns
  • Configuration
    Stack
  • Beam Divergence
    8 to 14 Degree (Horizontal), 19 to 29 Degree (Vertical)
  • Beam Divergence Parallel
    8 to 14 Degree
  • Beam Divergence Perpendicular
    19 to 29 Degree
  • Duty Cycle
    0.001
  • Rise/Fall Time
    2 ns (Rise)
  • Threshold Current :
    0.5 A
  • Forward Voltage
    13 to 16 V
  • Reverse Voltage
    2 V
  • Operating Current
    10 A
  • Operating Current
    10 A
  • Operating Voltage
    13 to 16 V
  • Peak Power
    18 to 21 W
  • Operating Current (Pulsed)
    10 A
  • Emitting Area
    70 x 10 µm
  • Pulsed Laser Forward Current
    10 A
  • Package Type
    TO-Can
  • Package
    TO-Can
  • Pulse Repetition Rate
    1 kHz

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
