V980-10GWA-1TGA

Laser Diode by Inneos

Note: Your Quotation Request will be directed to Inneos.

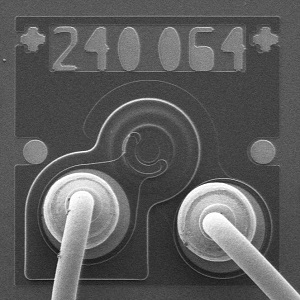

The V980-10GWA-1TGA from Inneos is a Vertical-Cavity Surface-Emitting Laser Diode that operates at a wavelength of 980 nm. It delivers a data rate of up to 10 Gbps and an optical output power of 2.7 mW. This single-channel top-emitting laser diode has

Product Specifications

View similar products

Product Details

  • Part Number
    V980-10GWA-1TGA
  • Manufacturer
    Inneos
  • Description
    980 nm, 10 Gbps Vertical-Cavity Surface-Emitting Laser Diode for Aerospace Applications

Applications

  • Application
    Transmitter Optical Sub-Assemblies, High-performance Transceivers, Harsh Environment Sensors
  • Application Industry
    Automotive, Industrial, Aerospace

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Beam Divergence Half Angle
    13 Degrees
  • Operation Mode
    CW Laser
  • Wavelength
    965 to 990 nm
  • Output Power
    2 to 2.7 mW
  • Output Power
    2 to 2.7 mW
  • Spectral Width (FWHM)
    0.4 nm
  • Operating Voltage
    1.7 to 2.9 V
  • Differential Resistance
    68 Ohms
  • Operating Current
    5 mA
  • Operating Current
    5 mA
  • Reverse Voltage
    8 V
  • Threshold Current :
    1.25 to 2.5 mA
  • Laser Class
    Class 3B
  • Laser Color
    Infrared
  • Slope Efficiency
    0.5 to 0.6 mW/mA
  • Package Type
    Die
  • Package
    Bare Die Package
  • Type
    Free Space Laser Diode
  • Wavelength Temp. Coefficient
    0.06 to 0.07 nm / Degree C
  • Note
    Small Signal Bandwidth: 7.5 GHz, Data rate: up to 10 Gbps

Temperature

  • Operating Temperature
    -55 to 85 Degree C
  • Storage Temperature
    -65 to 135 Degree C
