I0785MB0800MX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innovative Photonic Solutions.

The I0785MB0800MX from Innovative Photonic Solutions is a Laser Diode with Wavelength 785 nm, Output Power 800 mW, Output Power 800 mW, Operating Current 1500 mA, Operating Current 1500 mA. More details for I0785MB0800MX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    I0785MB0800MX
  • Manufacturer
    Innovative Photonic Solutions
  • Description

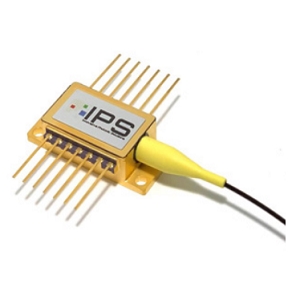

    800 mW, Laser Diode with 785 nm wavelength having Butterfly package

Applications

  • Application
    High Resolution Raman Spectroscopy, Direct-Diode Frequency Doubling, Fiber Laser Pumping, Metrology & Interferometry, Remote Sensing
  • Application Industry
    Spectroscopy, Interferometry, Metrology, Pumping, Remote Sensing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    785 nm
  • Output Power
    800 mW
  • Output Power
    800 mW
  • Spectral Width (FWHM)
    0.08 to 0.1 nm
  • Wavelength Tolerance
    ±0.5 nm
  • Forward Current(PD)
    30 µA
  • Operating Current
    1500 mA
  • Operating Current
    1500 mA
  • Operating Voltage
    2.3 V
  • Laser Class
    Class 3B, Class IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly
  • Note
    Stabilized Output Spectrum: <0.007 nm / Degree C)

Physical Properties

  • Fiber core diameter
    62.5 µm, 105 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/PC, SMA905

Temperature

  • Storage Temperature
    15 to 45 Degree C
