I0830MB0350MX

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innovative Photonic Solutions.

The I0830MB0350MX from Innovative Photonic Solutions is a Laser Diode with Wavelength 830 nm, Output Power 350 mW, Output Power 350 mW, Operating Current 6000 mA, Operating Current 6000 mA. More details for I0830MB0350MX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    I0830MB0350MX
  • Manufacturer
    Innovative Photonic Solutions
  • Description

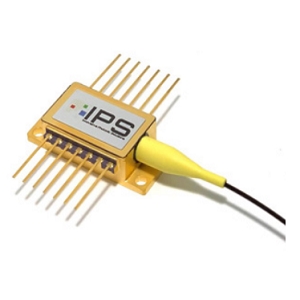

    350 mW, Laser Diode with 830 nm wavelength having Butterfly package

Applications

  • Application
    High Resolution Raman Spectroscopy, Direct-Diode Frequency Doubling, Fiber Laser Pumping, Metrology & Interferometry, Remote Sensing
  • Application Industry
    Spectroscopy, Interferometry, Metrology, Pumping, Remote Sensing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Output Power
    350 mW
  • Output Power
    350 mW
  • Spectral Width (FWHM)
    0.08 to 0.1 nm
  • Wavelength Tolerance
    ±0.5 nm
  • Forward Current(PD)
    30 µA
  • Operating Current
    6000 mA
  • Operating Current
    6000 mA
  • Operating Voltage
    2.3 V
  • Laser Class
    Class 3B, Class IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly
  • Note
    Stabilized Output Spectrum: <0.007 nm / Degree C)

Physical Properties

  • Fiber core diameter
    62.5 µm, 105 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/PC, SMA905

Temperature

  • Storage Temperature
    15 to 45 Degree C
