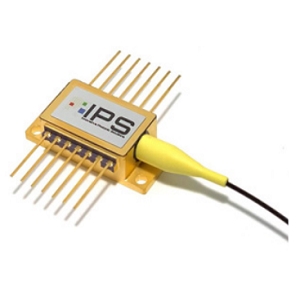

I0830SB0100P

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innovative Photonic Solutions.

The I0830SB0100P from Innovative Photonic Solutions is a Laser Diode with Wavelength 830 nm, Output Power 100 mW, Output Power 100 mW, Operating Current 250 mA, Operating Current 250 mA. More details for I0830SB0100P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    I0830SB0100P
  • Manufacturer
    Innovative Photonic Solutions
  • Description
    100 mW, Laser Diode with 830 nm wavelength having Butterfly package

Applications

  • Application
    High Resolution Raman Spectroscopy, Direct-Diode Frequency Doubling, Fiber Laser Seeding, Metrology & Interferometry, Remote Sensing
  • Application Industry
    Spectroscopy, Interferometry, Metrology, Seeding, Remote Sensing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Output Power
    100 mW
  • Output Power
    100 mW
  • Spectral Width (FWHM)
    100 kHz
  • Wavelength Tolerance
    ±0.5 nm
  • Polarization Extinction Ratio
    >17 to 20 dB
  • Forward Current(PD)
    30 µA
  • Operating Current
    250 mA
  • Operating Current
    250 mA
  • Operating Voltage
    2.3 V
  • Laser Class
    Class 3B, Class IV
  • Fiber Modes
    Single Mode, Polarization Maintaining
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly
  • Note
    Stabilized Output Spectrum: <0.007 nm / Degree C)

Connections & Interface

  • Connector
    FC/PC, FC/APC

Temperature

  • Storage Temperature
    15 to 45 Degree C
