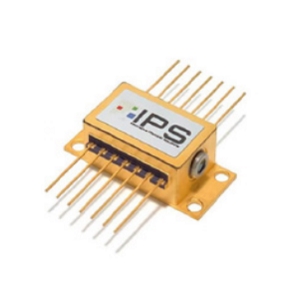

I0830SB0175B

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innovative Photonic Solutions.

The I0830SB0175B from Innovative Photonic Solutions is a Laser Diode with Wavelength 830 nm, Output Power 175 mW, Output Power 175 mW, Operating Current 500 mA, Operating Current 500 mA. More details for I0830SB0175B can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    I0830SB0175B
  • Manufacturer
    Innovative Photonic Solutions
  • Description
    175 mW, Laser Diode with 830 nm wavelength having Butterfly package

Applications

  • Application
    High Resolution Raman Spectroscopy, Direct-Diode Frequency Doubling, Fiber Laser Seeding, Metrology & Interferometry, Remote Sensing
  • Application Industry
    Spectroscopy, Interferometry, Metrology, Seeding, Remote Sensing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Output Power
    175 mW
  • Output Power
    175 mW
  • Spectral Width (FWHM)
    100 kHz
  • Beam Quality Factor (M2)
    <1.2
  • Beam Divergence
    2 mrad
  • Beam Shape
    Elliptical
  • Wavelength Tolerance
    ±0.5 nm
  • Polarization Extinction Ratio
    >17 to 20 dB
  • Transverse Mode
    TEM00
  • Forward Current(PD)
    30 µA
  • Operating Current
    500 mA
  • Operating Current
    500 mA
  • Operating Voltage
    2.3 V
  • Thermistor Resistance
    10 kOhms
  • Laser Class
    Class 3B, Class IV
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly
  • Note
    Stabilized Output Spectrum: <0.007 nm / Degree C), Beam Exit Angle: <3 Degrees

Physical Properties

  • RoHS
    Yes

Temperature

  • Storage Temperature
    15 to 45 Degree C
