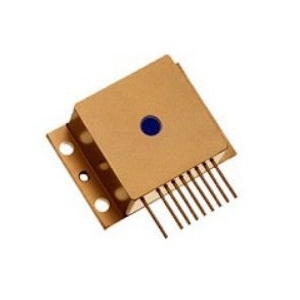

Intense 3040

Laser Diode by Intense Limited
Request Quote

Note: Your Quotation Request will be directed to Intense Limited.

The Intense 3040 from Intense Limited is a Laser Diode with Wavelength 808 nm, Output Power 4 W, Output Power 4 W, Output Power (CW) 4 W, Threshold Current 0.2 A. More details for Intense 3040 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Intense 3040
  • Manufacturer
    Intense Limited
  • Description
    808nm CW laser diodes with high brightness for industrial and medical applications.

Applications

  • Application
    Wafer, Fabrication, Packaging, Production, Test & Characterization, Defence and Security, Medical, Commercial, Industrial
  • Application Industry
    production Process, Market Sectors, Defence and Security, Medical, Commercial, Industrial

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Output Power
    4 W
  • Output Power
    4 W
  • Output Power (CW)
    4 W
  • Spectral Width (FWHM)
    2 nm
  • Slope Efficiency
    1 W/A
  • Beam Divergence
    40 X 10 Degree
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    0.2 A
  • Operating Current
    4.7 A
  • Operating Current
    4.7 A
  • Operating Voltage
    2 V
  • Operating Current (CW)
    4.7 A
  • Fiber Modes
    Multi-Mode
  • Package Type
    C-Mount, HHL
  • Package
    TO3, HHL
  • Note
    Source Size: 200 µm
