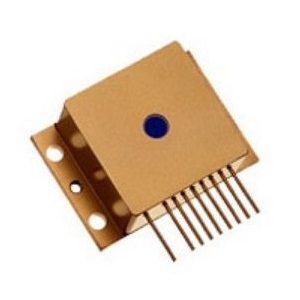

Intense 3110

Laser Diode by Intense Limited
Request Quote

Note: Your Quotation Request will be directed to Intense Limited.

The Intense 3110 from Intense Limited is a Laser Diode with Wavelength 980 nm, Output Power 1 W, Output Power 1 W, Output Power (CW) 1 W, Threshold Current 0.2 A. More details for Intense 3110 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Intense 3110
  • Manufacturer
    Intense Limited
  • Description
    980nm high brightness laser diodes for industrial applications.

Applications

  • Application
    Wafer, Fabrication, Packaging, Production, Test & Characterization, Defence and Security, Medical, Commercial, Industrial
  • Application Industry
    production Process, Market Sectors, Defence and Security, Medical, Commercial, Industrial

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Output Power
    1 W
  • Output Power
    1 W
  • Output Power (CW)
    1 W
  • Spectral Width (FWHM)
    3 nm
  • Slope Efficiency
    1 W/A
  • Beam Divergence
    40 x 10 Degree
  • Wavelength Tolerance
    ±10 nm
  • Threshold Current :
    0.2 A
  • Operating Current
    1.3 A
  • Operating Current
    1.3 A
  • Operating Current (CW)
    1.3 A
  • Fiber Modes
    Multi-Mode
  • Series Resistance
    0.35 Ohms
  • Package Type
    C-Mount, HHL
  • Package
    9 mm, HHL, TO3
  • Note
    Source Size: 50 µm
