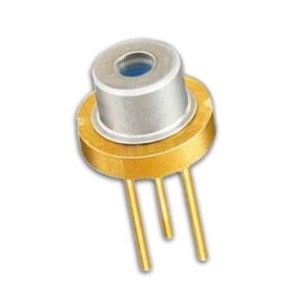

ISV850-100

Laser Diode by ISOCOM Limited
Request Quote

Note: Your Quotation Request will be directed to ISOCOM Limited.

The ISV850-100 from ISOCOM Limited is a Laser Diode with Wavelength 840 to 870 nm, Output Power 100 mW, Output Power 0.1 W, Output Power (CW) 0.1 W, Output Power (Pulsed) 0.1 W. More details for ISV850-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ISV850-100
  • Manufacturer
    ISOCOM Limited
  • Description
    Hermetically Sealed Radiation Hard VCSEL Laser Diode

Applications

  • Application
    Gesture Recognition, 3D IR Imaging, LIDAR

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Wavelength
    840 to 870 nm
  • Output Power
    100 mW
  • Output Power
    0.1 W
  • Output Power (CW)
    0.1 W
  • Output Power (Pulsed)
    0.1 W
  • Pulse Duration
    10 nS
  • Slope Efficiency
    0.8 mW/mA
  • Configuration
    Single-Emitter Array
  • Beam Divergence
    10 to 25 Degrees
  • Beam Shape
    Gaussian
  • Duty Cycle
    0.01
  • Rise/Fall Time
    1 nS
  • Threshold Current :
    50 mA
  • Forward Voltage
    2.8 V
  • Forward Current(PD)
    100 mA
  • Peak Forward Current
    20 A
  • Reverse Voltage
    5 V
  • Operating Current
    0.1 A
  • Operating Voltage
    2.8 V
  • Peak Power
    7 W
  • Laser Color
    Infrared
  • Series Resistance
    1 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    TO-46
  • Stack/Array
    Array

Temperature

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
