880nm - 30W - 400µm| JPT

Laser Diode by JPT Opto-Electronics
Request Quote

Note: Your Quotation Request will be directed to JPT Opto-Electronics.

The 880nm - 30W - 400µm| JPT from JPT Opto-Electronics is a Laser Diode with Wavelength 877.6 nm, 878.6 nm, 879.6 nm (Center), Output Power 30 W, Output Power 30 W, Threshold Current 1.8 A, Operating Current 10 to 12 A. More details for 880nm - 30W - 400µm| JPT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    880nm - 30W - 400µm| JPT
  • Manufacturer
    JPT Opto-Electronics
  • Description

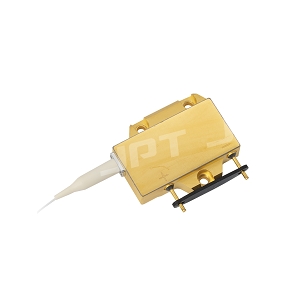

    878.6nm Wavelength-Stabilized Multiple single emitter based diode laser wth Fiber Pigtailed package

Applications

  • Application
    Solid-state laser pumping, Medical applications, Material processing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    877.6 nm, 878.6 nm, 879.6 nm (Center)
  • Output Power
    30 W
  • Output Power
    30 W
  • Spectral Width (FWHM)
    0.5 nm
  • Slope Efficiency
    2.8 W/A
  • Configuration
    Single-Emitter
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Power Conversion Efficiency
    0.45
  • Threshold Current :
    1.8 A
  • Operating Current
    10 to 12 A
  • Operating Current
    10 to 12 A
  • Operating Voltage
    7 to 8 V
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Fiber core diameter
    400 µm
  • Fiber length
    1.5 m

Connections & Interface

  • Connector
    SMA905

Temperature

  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    -20 to 85 Degree C
