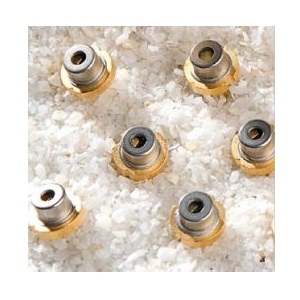

905D1S09UA

Laser Diode by Laser Components
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser Components.

The 905D1S09UA from Laser Components is a Laser Diode with Wavelength 895 to 915 nm, Output Power 19 W, Output Power (CW) 19 W, Threshold Current 750 mA, Operating Current 22 A. More details for 905D1S09UA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    905D1S09UA
  • Manufacturer
    Laser Components

Applications

  • Application
    Range Finding, Surveying Equipment, Weapons Simulation, Laser Radar, Obstacle Detection, Medical, Automotive
  • Application Industry
    Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 to 915 nm
  • Output Power
    19 W
  • Output Power (CW)
    19 W
  • Spectral Width (FWHM)
    8 nm
  • Pulse Duration
    1 ps
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    12 Degree
  • Beam Divergence Perpendicular
    20 Degree
  • Laser Gain Medium
    InGaAs/GaAs
  • Threshold Current :
    750 mA
  • Operating Current
    22 A
  • Emitting Area
    230 x 1 µm
  • Package Type
    TO-Can
  • Package
    Hermetic 5.6 mm CD

Temperature

  • Operating Temperature
    -45 to 85 Degree C
  • Storage Temperature
    -55 to 100 Degree C
