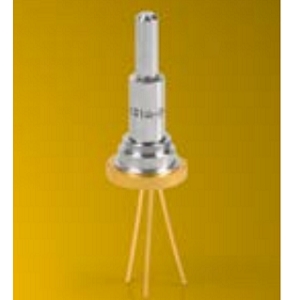

905D1S3J06-SQF-14-15

Laser Diode by Laser Components
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser Components.

The 905D1S3J06-SQF-14-15 from Laser Components is a Laser Diode with Wavelength 895 nm, 905 nm, 915 nm, Output Power 25 W, Output Power 25 W, Threshold Current 500 mA, Operating Temperature -40 to 85 Degree C. More details for 905D1S3J06-SQF-14-15 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    905D1S3J06-SQF-14-15
  • Manufacturer
    Laser Components
  • Description
    Pulsed Laser Diodes with Homogenized Beam

Applications

  • Application
    Range Finding, Surveying Equipment, Laser Radar, Medical, "Friend or Foe" Identification, Security Barrier, Weapon Simulation
  • Application Industry
    Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 nm, 905 nm, 915 nm
  • Output Power
    25 W
  • Output Power
    25 W
  • Spectral Width (FWHM)
    8 nm
  • Pulse Duration
    250 ns
  • Configuration
    Single-Emitter, Single Stack
  • Wavelength Temp. Coefficient
    0.27 nm/ Degree C
  • Threshold Current :
    500 mA
  • Forward Voltage
    11 V
  • Peak Forward Current
    22 A
  • Reverse Voltage
    6 V
  • Laser Class
    Class IIIb
  • Duty Factor
    0.001
  • Laser Color
    Infrared
  • Emitting Area
    140 µm x 140 µm
  • Emitting Size/Emitter Chip
    160 µm x 10 µm
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    200 Degree C
  • Package Type
    TO-Can
  • Package
    TO-Can
  • Stack/Array
    Single Stack

Physical Properties

  • Fiber length
    15 mm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 85 Degree C
