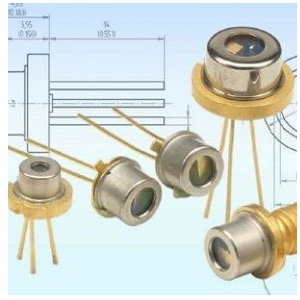

905D1S3J08X

Laser Diode by Laser Components
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser Components.

The 905D1S3J08X from Laser Components is a Laser Diode with Wavelength 895 to 915 nm, Output Power 65 W, Output Power (CW) 65 W, Threshold Current 750 mA, Operating Current 40 A. More details for 905D1S3J08X can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    905D1S3J08X
  • Manufacturer
    Laser Components

Applications

  • Application
    Range Finding, Surveying Equipment, Weapons Simulation, Laser Radar, Ceilometer, Optical Trigger, Medical
  • Application Industry
    Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 to 915 nm
  • Output Power
    65 W
  • Output Power (CW)
    65 W
  • Spectral Width (FWHM)
    4 nm
  • Pulse Duration
    150 ns
  • Configuration
    Single Stack
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    25 Degree
  • Laser Gain Medium
    InGaAs/GaAs
  • Threshold Current :
    750 mA
  • Operating Current
    40 A
  • Emitting Area
    200 x 10 µm
  • Package Type
    TO-Can
  • Package
    8-32 coax, 9 mm CD, TO-18, 5.6 mm CD, ceramic carrier
  • Stack/Array
    Single Stack, Stack

Temperature

  • Operating Temperature
    -45 to 85 Degree C
  • Storage Temperature
    -55 to 100 Degree C
