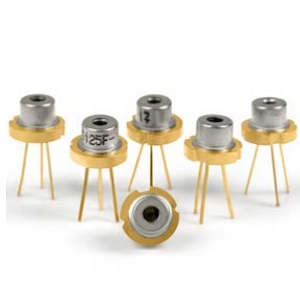

905D1S3JT06UA

Laser Diode by Laser Components
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser Components.

The 905D1S3JT06UA from Laser Components is a Laser Diode with Wavelength 895 nm, 905 nm, 915 nm, Output Power 80 W, Output Power 80 W, Threshold Current 600 mA, Operating Current 27 A. More details for 905D1S3JT06UA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    905D1S3JT06UA
  • Manufacturer
    Laser Components
  • Description
    High Power/Low Cost Multi-Junction Pulsed Laser Diode

Applications

  • Application
    Range Finding, Surveying Equipment, Weapons Simulation, LiDAR, Obstacle Detection, Medical
  • Application Industry
    Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 nm, 905 nm, 915 nm
  • Output Power
    80 W
  • Output Power
    80 W
  • Spectral Width (FWHM)
    5 nm
  • Pulse Duration
    150 ns
  • Slope Efficiency
    3.2 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    10 to 15 Degrees (Parallel), 23 to 48 Degrees (Perpendicular)
  • Beam Divergence Parallel
    10 to 15 Degrees
  • Beam Divergence Perpendicular
    23 to 48 Degrees
  • Chip Technology
    InGaAs, GaAs
  • Polarization Extinction Ratio
    >98%
  • Wavelength Temp. Coefficient
    0.28 nm/ Degree C
  • Threshold Current :
    600 mA
  • Forward Voltage
    11.8 V
  • Reverse Voltage
    6 V
  • Operating Current
    27 A
  • Operating Current
    27 A
  • Duty Factor
    0.001
  • Laser Color
    Infrared
  • Emitting Area
    160 µm x 10 µm
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    5.6 mm CD

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -40 to 105 Degree C
  • Storage Temperature
    -55 to 125 Degree C
