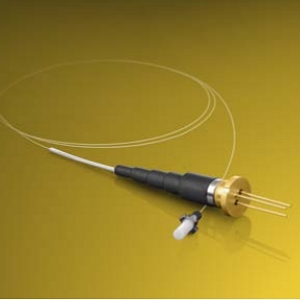

HI155G1S04FP-10/22-F-0-01

Laser Diode by Laser Components
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Laser Components.

The HI155G1S04FP-10/22-F-0-01 from Laser Components is a Laser Diode with Wavelength 1520 nm, 1550 nm, 1580 nm, Output Power 5 W, Output Power 5 W, Threshold Current 600 mA, Operating Temperature -40 to 85 Degree C. More details for HI155G1S04FP-10/22-F-0-01 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HI155G1S04FP-10/22-F-0-01
  • Manufacturer
    Laser Components
  • Description
    Fiber Pigtailed Pulsed Laser Diode

Applications

  • Application
    Range Finding, Surveying Equipment, Laser Radar, Medical, DTS
  • Application Industry
    Medical

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1520 nm, 1550 nm, 1580 nm
  • Output Power
    5 W
  • Output Power
    5 W
  • Spectral Width (FWHM)
    30 nm
  • Pulse Duration
    150 ns
  • Configuration
    Single-Emitter, Single Stack
  • Wavelength Temp. Coefficient
    0.6 nm/ Degree C
  • Threshold Current :
    600 mA
  • Peak Forward Current
    30 A
  • Reverse Voltage
    6 V
  • Laser Class
    Class IIIb
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    100 µm
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    200 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Stack/Array
    Single Stack
  • Note
    Cladding Diameter: 125 µm, Coupling Efficiency: 85%

Physical Properties

  • Fiber core diameter
    105 µm
  • Fiber length
    1 m

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 85 Degree C
