8809-0028

Laser Diode by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 8809-0028 from QPC Lasers is a Laser Diode with Wavelength 976 nm, Output Power 360 W, Output Power 360 W, Output Power (CW) 360 W, Threshold Current 1.2 A. More details for 8809-0028 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    8809-0028
  • Manufacturer
    QPC Lasers
  • Description

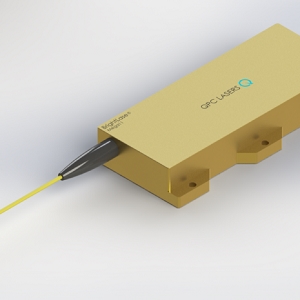

    976 nm, 360 W, 200 µm Fiber Pigtailed Diode Laser Module

Applications

  • Application
    Fiber Laser Pumping, Materials Processing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    976 nm
  • Output Power
    360 W
  • Output Power
    360 W
  • Output Power (CW)
    360 W
  • Spectral Width (FWHM)
    4.5 to 5 nm
  • Wavelength Tolerance
    ±3 nm
  • Wavelength Temp. Coefficient
    0.33 nm/Degree C
  • Threshold Current :
    1.2 A
  • Operating Current
    25 A
  • Operating Current
    25 A
  • Operating Voltage
    27.5 to 29 V
  • Laser Class
    Class 4
  • Numerical Aperture
    0.16
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed
  • Relative Humidity
    5 to 85%

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    2 m
  • RoHS
    Yes

Temperature

  • Operating Temperature
    0 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
