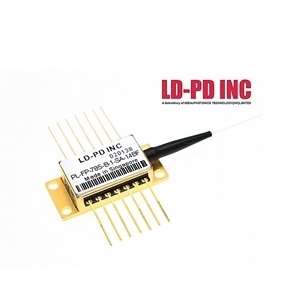

PL-FP-785-B-A81-MA-14BF

Laser Diode by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-FP-785-B-A81-MA-14BF from LD-PD Inc is a Laser Diode with Wavelength 785 nm, Output Power 1000 mW, Output Power 1000 mW, Threshold Current 400 mA, Operating Current 1500 to 2200 mA. More details for PL-FP-785-B-A81-MA-14BF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-FP-785-B-A81-MA-14BF
  • Manufacturer
    LD-PD Inc
  • Description
    785nm 1000mW FP Fiber Coupled Laser Diode

Applications

  • Application
    Laser Raman, Spectroscopy, Sensing, Medical, Military

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW operation
  • Wavelength
    785 nm
  • Output Power
    1000 mW
  • Output Power
    1000 mW
  • Spectral Width (FWHM)
    3 nm
  • Wavelength Tolerance
    ±1 nm
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    400 mA
  • Forward Voltage
    1.8 to 2.5 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    1500 to 2200 mA
  • Operating Current
    1500 to 2200 mA
  • Reverse Voltage(PD)
    1 V
  • Operating Voltage
    1.8 to 2.5 V
  • Operating Current (CW)
    1500 to 2200 mA
  • Thermistor Resistance
    10 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    300 to 500 µA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly package

Physical Properties

  • Fiber core diameter
    105 µm

Connections & Interface

  • Connector
    FC/APC
