L4S-91510-120E

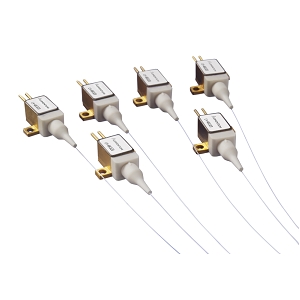

Laser Diode by Lumentum Operations LLC
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumentum Operations LLC.

The L4S-91510-120E from Lumentum Operations LLC is a Laser Diode with Wavelength 905 to 928 nm, Output Power 12 W, Output Power (CW) 12 W, Threshold Current 700 to 950 mA, Operating Current 13.6 to 15 A. More details for L4S-91510-120E can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L4S-91510-120E
  • Manufacturer
    Lumentum Operations LLC
  • Description
    915/940 nm Fiber-Coupled Diode Lasers

Applications

  • Application
    Fiber laser pumping, Material processing, Graphic arts, Medical, Solid State Pumping

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    905 to 928 nm
  • Output Power
    12 W
  • Output Power (CW)
    12 W
  • Spectral Width (FWHM)
    3 to 6 nm
  • Threshold Current :
    700 to 950 mA
  • Reverse Voltage
    2 V
  • Operating Current
    13.6 to 15 A
  • Series Resistance
    0.04 Ohms

Physical Properties

  • Fiber core diameter
    102 to 108 µm
  • Fiber length
    0.9 to 1 m

Temperature

  • Operating Temperature
    15 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
