LM-8XX-Q7200-F-G36-P0.7-1

Laser Diode by Lumispot Tech
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumispot Tech.

The LM-8XX-Q7200-F-G36-P0.7-1 from Lumispot Tech is a Laser Diode with Wavelength 790 nm, 808 nm, 815 nm (Center), Output Power 2000 to 10800 W (Peak), Output Power 2000 to 10800 W (Peak), Operating Current 200 to 300 A, Operating Current 200 to 300 A. More details for LM-8XX-Q7200-F-G36-P0.7-1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LM-8XX-Q7200-F-G36-P0.7-1
  • Manufacturer
    Lumispot Tech
  • Description

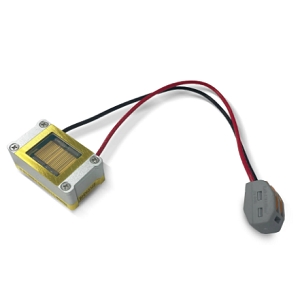

    808 nm 7200 W QCW Fast-Axis collimation Laser Diode Stack

Applications

  • Application
    Pump source, Illumination, Detection, Research

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    QCW Laser, Pulsed Laser
  • Wavelength
    790 nm, 808 nm, 815 nm (Center)
  • Output Power
    2000 to 10800 W (Peak)
  • Output Power
    2000 to 10800 W (Peak)
  • Pulse Duration
    200 to 300 µs
  • Configuration
    Bar, Stack
  • Beam Divergence
    4 Degree (Parallel), 8 Degree (Perpendicular)
  • Beam Divergence Parallel
    4 Degree
  • Beam Divergence Perpendicular
    8 Degree
  • Wavelength Tolerance
    ±2 nm
  • Duty Cycle
    0.4 to 1%
  • Power Conversion Efficiency
    50 to 55%
  • Operating Current
    200 to 300 A
  • Operating Current
    200 to 300 A
  • Operating Voltage
    1.8 to 2 V
  • Peak Power
    2000 to 10800 W
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Stack
  • Note
    Spacing between bars: 0.73 mm

Temperature

  • Temperature Drift
    0.26 to 0.28 nm/Degree C
  • Operating Temperature
    -45 to 70 Degree C
  • Storage Temperature
    -60 to 85 Degree C
