ML1279

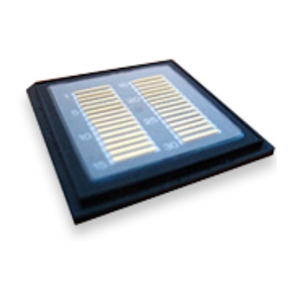

Laser Diode by Modulight, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1279 from Modulight, Inc. is a Laser Diode with Wavelength 785 to 810 nm, Output Power 50 W, Output Power 50 W, Threshold Current 11.5 A, Operating Voltage <2 V. More details for ML1279 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1279
  • Manufacturer
    Modulight, Inc.
  • Description
    785 to 810 nm CW Laser Diode with 50 W Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    785 to 810 nm
  • Output Power
    50 W
  • Output Power
    50 W
  • Spectral Width (FWHM)
    <4 nm
  • Slope Efficiency
    1.15 W/A
  • Configuration
    Bar
  • Beam Divergence Parallel
    5 to 10 Degree
  • Beam Divergence Perpendicular
    23 to 24 Degree
  • Wavelength Tolerance
    ±10 nm
  • Emitter Width
    150 µm
  • Transverse Mode
    TM
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Threshold Current :
    11.5 A
  • Operating Voltage
    <2 V
  • Laser Color
    Infrared
  • Package Type
    Bar
  • Package
    Bar
