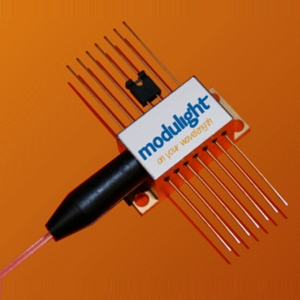

ML2017

Laser Diode by Modulight, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML2017 from Modulight, Inc. is a Laser Diode with Wavelength 1470 nm, Output Power 700 mW, Output Power 700 mW, Threshold Current 250 mA, Operating Current 2.8 A. More details for ML2017 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML2017
  • Manufacturer
    Modulight, Inc.
  • Description
    1470 nm Single-Emitter Laser Diode with 700 mW Power

Applications

  • Application
    Illumination, Sensing, Optical pumping, Measurement and analysis, Therapeutic procedures, Diagnostics, Aesthetic treatments
  • Application Industry
    Defense, Industrial, Medical

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1470 nm
  • Output Power
    700 mW
  • Output Power
    700 mW
  • Configuration
    Single-Emitter
  • Threshold Current :
    250 mA
  • Operating Current
    2.8 A
  • Operating Current
    2.8 A
  • Operating Voltage
    1.4 V
  • Laser Class
    Class 4
  • Laser Color
    Infrared
  • Numerical Aperture
    0.22
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    1 m

Connections & Interface

  • Connector
    SMA-905

Temperature

  • Operating Temperature
    30 Degree C
  • Storage Temperature
    -20 to 50 Degree C
