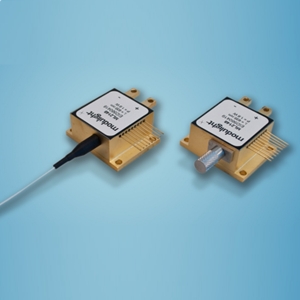

ML2164

Laser Diode by Modulight, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML2164 from Modulight, Inc. is a Laser Diode with Wavelength 680 nm, Output Power 3 W, Output Power 3 W, Threshold Current 0.67 A, Operating Current 1.6 A. More details for ML2164 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML2164
  • Manufacturer
    Modulight, Inc.
  • Description
    680 nm Single-Emitter Laser Diode with 3 W Power

Applications

  • Application
    Illumination, Imaging, Pumping, Aesthetic Treatments, Fluorescence, Photodynamic Therapy
  • Application Industry
    Industrial, Medical

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    680 nm
  • Output Power
    3 W
  • Output Power
    3 W
  • Configuration
    Single-Emitter
  • Threshold Current :
    0.67 A
  • Operating Current
    1.6 A
  • Operating Current
    1.6 A
  • Operating Voltage
    8.7 V
  • Laser Class
    Class 4
  • Laser Color
    Red
  • Numerical Aperture
    0.22
  • Package Type
    Coaxial Pigtailed, Module with connectors
  • Package
    Coaxial Pigtailed, Module with connectors

Physical Properties

  • Dimension
    38 x 48 x 22 mm
  • Fiber core diameter
    200 µm
  • Fiber length
    100 cm

Connections & Interface

  • Connector
    SMA-905, ST, FC

Temperature

  • Operating Temperature
    10 to 20 Degree C (Laser Diode), 30 Degree C (Ambient)
  • Storage Temperature
    -20 to 50 Degree C
