ML3308

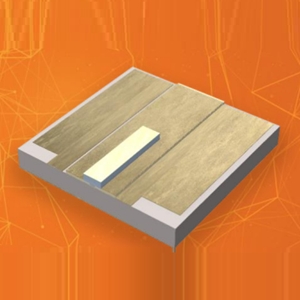

Laser Diode by Modulight, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML3308 from Modulight, Inc. is a Laser Diode with Wavelength 780 to 790 nm, Output Power 1500 mW, Output Power 1500 mW, Threshold Current 900 mA, Operating Current 4.5 A. More details for ML3308 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML3308
  • Manufacturer
    Modulight, Inc.
  • Description
    780 to 790 nm Distributed-Bragg-Reflector (DBR) Laser Diode Integrated with tapered amplifier

General Parameters

  • Technology
    Distributed-Bragg-Reflector (DBR)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    780 to 790 nm
  • Output Power
    1500 mW
  • Output Power
    1500 mW
  • Transverse Mode
    TEM00, TM
  • Threshold Current :
    900 mA
  • Operating Current
    4.5 A
  • Operating Current
    4.5 A
  • Laser Class
    Class 4
  • Laser Color
    Infrared
  • Fiber Modes
    Single Mode
  • Package Type
    Chip, Sub-Mount
  • Package
    Chip, Sub-Mount

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    5 to 45 Degree C
  • Storage Temperature
    5 to 85 Degree C

Technical Documents
Click to view more product details on manufacturer's website
