ML5740-658

Laser Diode by Modulight, Inc.

Note: Your Quotation Request will be directed to Modulight, Inc..

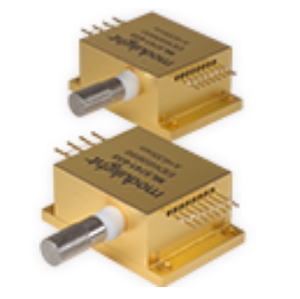

The ML5740-658 from Modulight’s ChiliLase Series is a Multi-Chip Red Laser Module that operates at 658 nm. It delivers 2.5 W of CW optical output power and has a threshold current of 0.4 A. This single emitter laser requires a DC supply of 8.6 V and consumes less than 1.6 A of current. It uses a photodiode for power monitoring and a thermistor and TEC for temperature monitoring.

The fiber-coupled laser is available in a module that measures 38 x 48 x 22 mm with SMA-905/ST/FC connectors and is suitable for industrial and medical applications such as illumination, imaging, pumping, aesthetic treatments, fluorescence, and photodynamic therapy.

Product Specifications View similar products

Product Details

  • Part Number
    ML5740-658
  • Manufacturer
    Modulight, Inc.
  • Description
    658 nm Multi-Chip Red Laser Module for Industrial and Medical Applications

Applications

  • Application
    Illumination, Imaging, Pumping, Aesthetic Treatments, Fluorescence, Photodynamic Therapy
  • Application Industry
    Industrial, Medical

General Parameters

  • Configuration
    Single Emitter
  • Operation Mode
    CW Laser
  • Wavelength
    658 nm
  • Output Power
    2.5 W
  • Output Power
    2.5 W
  • Operating Voltage
    8.6 V
  • Operating Current
    1.6 A
  • Operating Current
    1.6 A
  • Forward Current(PD)
    0.7 A
  • Reverse Voltage
    0 V
  • Threshold Current
    0.4 A
  • Numerical Aperture
    0.22
  • Package Type
    HHL Pigtail
  • Type
    Fiber-Coupled Laser Diode
  • Note
    Bend Radius: 100 mm

Physical Properties

  • Dimension
    38 x 48 x 22 mm
  • Fiber core diameter
    220 µm
  • Fiber length
    50 cm

Connections & Interface

  • Connector
    SMA-905 / ST / FC

Temperature

  • Operating Temperature
    30 Degree C
  • Storage Temperature
    -20 to 50 Degree C
