M-Stack λ870-890 nm

Laser Diode by Monocrom
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Monocrom.

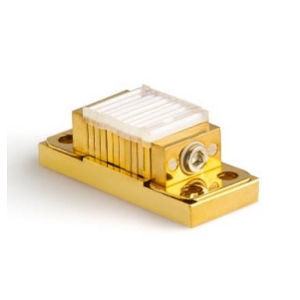

The M-Stack λ870-890 nm from Monocrom is a Laser Diode with Wavelength 870 to 890 nm, Output Power Up to 500 W, Output Power Up to 500 W, Output Power (CW) Up to 500 W, Operating Current <480 A. More details for M-Stack λ870-890 nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M-Stack λ870-890 nm
  • Manufacturer
    Monocrom
  • Description
    870 to 890 nm Horizontal Stack Laser Diodes with Up to 500 W Power

Applications

  • Application
    Hair removal, Defense applications, Material processing, Industrial applications, Printing

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    870 to 890 nm
  • Output Power
    Up to 500 W
  • Output Power
    Up to 500 W
  • Output Power (CW)
    Up to 500 W
  • Spectral Width (FWHM)
    <5 nm
  • Slope Efficiency
    1.2 W/A
  • Configuration
    Stack, Bar
  • Wavelength Tolerance
    ±5 nm
  • Wavelength Temp. Coefficient
    0.33 nm/K
  • Operating Current
    <480 A
  • Operating Current
    <480 A
  • Operating Voltage
    2 to 20 V
  • Operating Current (CW)
    <480 A
  • Bar Configuration
    Horizontal Stack
  • Cooling Method
    Conduction Cooled
  • No. of Bars
    1 to 10
  • Laser Color
    Infrared
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Stack
  • Note
    Bar to Bar Pitch: Down to 0.4 mm, Optics: FAC/SAC/BT
