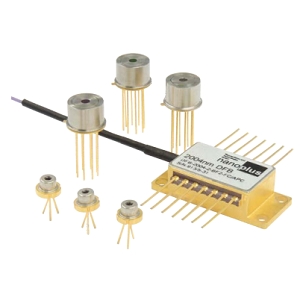

DFB laser diodes - 1650 nm - 1850 nm

Laser Diode by nanoplus

Note: Your Quotation Request will be directed to nanoplus.

The DFB laser diodes - 1650 nm - 1850 nm from nanoplus is a Laser Diode with Wavelength 1650 nm, 1742 nm, 1850 nm, Output Power 5 mW, Output Power 5 mW, Threshold Current 10 to 65 mA, Operating Current 70 mA. More details for DFB laser diodes - 1650 nm - 1850 nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DFB laser diodes - 1650 nm - 1850 nm
  • Manufacturer
    nanoplus
  • Description
    1650 nm, 1742 nm, 1850 nm DFB Laser diode with 5 mW Output Power

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1650 nm, 1742 nm, 1850 nm
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Wavelength Temp. Coefficient
    0.07 to 0.14 nm/K
  • Threshold Current :
    10 to 65 mA
  • Operating Current
    70 mA
  • Operating Current
    70 mA
  • Operating Voltage
    2 V
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can, Butterfly
  • Package
    TO-5, TO-56, Butterfly

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
