LQC1550-05E

Laser Diode by MKS | Newport
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

The LQC1550-05E from MKS | Newport is a Laser Diode with Wavelength 1550 nm, Output Power 5 mW, Output Power 5 mW, Operating Current 3000 mA, Operating Current 3000 mA. More details for LQC1550-05E can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LQC1550-05E
  • Manufacturer
    MKS | Newport
  • Description

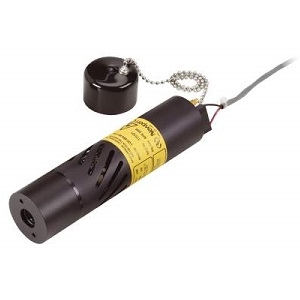

    Laser Diode Module 1550 nm 5 mW CW Elliptical beam

Applications

  • Application
    Spectroscopy, Interferometry, Machine Vision, Marking, Flow Cytometry, Tissue Fluorescence

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1550 nm
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Spectral Width (FWHM)
    1 nm
  • Beam Divergence
    <1.5 x 0.7 mrad
  • Beam Shape
    Elliptical
  • Wavelength Tolerance
    ±20 nm
  • Operating Current
    3000 mA
  • Operating Current
    3000 mA
  • Operating Voltage
    4.8 to 12 V
  • Package Type
    Module
  • Package
    Module
  • Relative Intensity Noise
    <0.5%

Physical Properties

  • Dimension
    38.1 (Dia.) x 157.5 mm

Temperature

  • Operating Temperature
    0 to 40 Degree C
