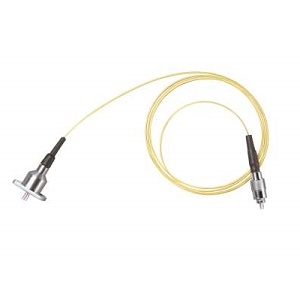

PL63E0011FCB-T

Laser Diode by MKS | Newport
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

The PL63E0011FCB-T from MKS | Newport is a Laser Diode with Wavelength 638 nm, Output Power 1 mW, Output Power 1 mW, Threshold Current 15 mA, Operating Current 22 mA. More details for PL63E0011FCB-T can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL63E0011FCB-T
  • Manufacturer
    MKS | Newport
  • Description
    Laser Diode Fiber Pigtailed 638 nm 1 mW 9/125 SM Fiber FC

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    638 nm
  • Output Power
    1 mW
  • Output Power
    1 mW
  • Wavelength Tolerance
    -7 nm/+3 nm
  • Rise/Fall Time
    2 ns
  • Threshold Current :
    15 mA
  • Operating Current
    22 mA
  • Operating Current
    22 mA
  • Fiber Modes
    Single Mode
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Fiber core diameter
    9 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/PC

Temperature

  • Operating Temperature
    -10 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
