PL66E0106FCB-T

Laser Diode by MKS | Newport
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

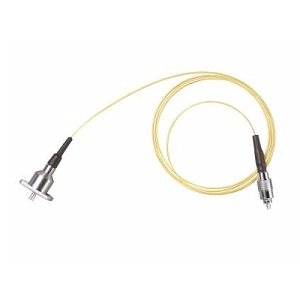

The PL66E0106FCB-T from MKS | Newport is a Laser Diode with Wavelength 660 nm, Output Power 10 mW, Output Power 10 mW, Threshold Current 55 mA, Operating Current 220 mA. More details for PL66E0106FCB-T can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL66E0106FCB-T
  • Manufacturer
    MKS | Newport
  • Description
    Laser Diode Fiber Pigtailed 660 nm 10 mW 4/125 SM Fiber FC

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    660 nm
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Wavelength Tolerance
    ±5 nm
  • Rise/Fall Time
    2 ns
  • Threshold Current :
    55 mA
  • Operating Current
    220 mA
  • Operating Current
    220 mA
  • Fiber Modes
    Single Mode
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Fiber core diameter
    4 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/PC

Temperature

  • Operating Temperature
    -10 to 60 Degree C
