PL98E0038FCB-T

Laser Diode by MKS | Newport
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

The PL98E0038FCB-T from MKS | Newport is a Laser Diode with Wavelength 980 nm, Output Power 3 mW, Output Power 3 mW, Threshold Current 12 mA, Operating Current 70 mA. More details for PL98E0038FCB-T can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL98E0038FCB-T
  • Manufacturer
    MKS | Newport
  • Description

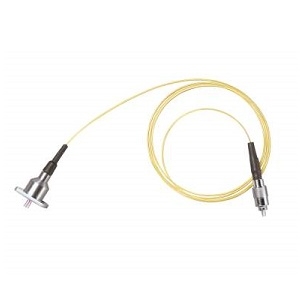

    Laser Diode Fiber Pigtailed 980 nm 3 mW 7/125 SM Fiber FC

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Output Power
    3 mW
  • Output Power
    3 mW
  • Wavelength Tolerance
    ±10 nm
  • Rise/Fall Time
    1 ns
  • Threshold Current :
    12 mA
  • Operating Current
    70 mA
  • Operating Current
    70 mA
  • Fiber Modes
    Single Mode
  • Package Type
    Fiber Pigtailed
  • Package
    Fiber Pigtailed

Physical Properties

  • Fiber core diameter
    6 µm
  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/PC

Temperature

  • Operating Temperature
    -10 to 60 Degree C

Technical Documents
Click to view more product details on manufacturer's website
