TO9-147-161

Laser Diode by MKS | Newport
Request Quote

Note: Your Quotation Request will be directed to MKS | Newport.

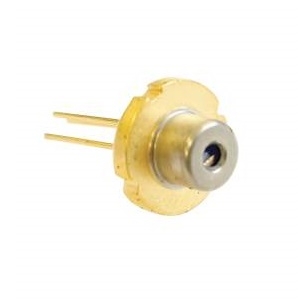

The TO9-147-161 from MKS | Newport is a Laser Diode with Wavelength 1550 nm, Output Power 1.6 W, Output Power 1.6 W, Threshold Current 0.5 A, Operating Current 7 A. More details for TO9-147-161 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TO9-147-161
  • Manufacturer
    MKS | Newport
  • Description
    Laser Diode Module TO-9 1550 nm 1.6 W

Applications

  • Application
    LiDAR

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1550 nm
  • Output Power
    1.6 W
  • Output Power
    1.6 W
  • Wavelength Tolerance
    ±20 nm
  • Threshold Current :
    0.5 A
  • Operating Current
    7 A
  • Operating Current
    7 A
  • Fiber Modes
    Multi-Mode
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -40 to 60 Degree C
Click to view more product details on manufacturer's website
