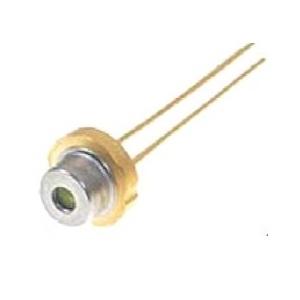

LD-405-05-70-M-2

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPELUS Technology Corporation.

The LD-405-05-70-M-2 from OPELUS Technology Corporation is a Laser Diode with Wavelength 400 to 410 nm, Output Power 0.008 W, Output Power (CW) 0.008 W, Threshold Current 20 to 40 mA, Operating Current 25 to 45 mA. More details for LD-405-05-70-M-2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LD-405-05-70-M-2
  • Manufacturer
    OPELUS Technology Corporation

Applications

  • Application
    Disc, HD DVD Driver, Industrial

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    400 to 410 nm
  • Output Power
    0.008 W
  • Output Power (CW)
    0.008 W
  • Slope Efficiency
    1.3 mW/mA
  • Configuration
    Single-Emitter
  • Threshold Current :
    20 to 40 mA
  • Reverse Voltage
    5 V
  • Operating Current
    25 to 45 mA
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    4.8 to 5.6 V
  • Monitor Current
    0.1 to 1 mA
  • Laser Color
    Blue
  • Package Type
    TO-Can
  • Package
    TO-18

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 80 Degree C
