LD-780-120-60-B-2

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPELUS Technology Corporation.

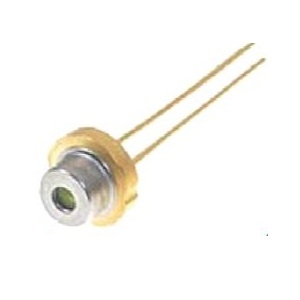

The LD-780-120-60-B-2 from OPELUS Technology Corporation is a Laser Diode with Wavelength 775 to 795 nm, Output Power 0.12 W, Output Power (CW) 0.12 W, Threshold Current 55 to 70 mA, Operating Current 170 to 190 mA. More details for LD-780-120-60-B-2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LD-780-120-60-B-2
  • Manufacturer
    OPELUS Technology Corporation

Applications

  • Application
    Industrial

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    775 to 795 nm
  • Output Power
    0.12 W
  • Output Power (CW)
    0.12 W
  • Slope Efficiency
    0.8 to 1 mW/mA
  • Configuration
    Single-Emitter
  • Threshold Current :
    55 to 70 mA
  • Reverse Voltage
    2 V
  • Operating Current
    170 to 190 mA
  • Operating Voltage
    1.9 to 2.3 V
  • Laser Color
    Infrared
  • Package Type
    TO-Can
  • Package
    TO-18

Temperature

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C
