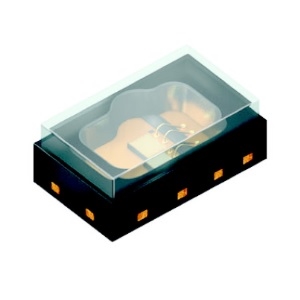

PLPVQ 940A

Laser Diode by OSRAM

Note: Your Quotation Request will be directed to OSRAM.

The PLPVQ 940A from OSRAM is a Vertical-Cavity Surface-Emitting Laser (VCSEL) that operates from 932 to 948 nm. This pulsed laser delivers a peak output power of up to 0.75 W and has a rise/fall time of 1 ns. It operates over a supply voltage of 1.5 to 2.7 V and consumes up to 0.75 A of current. The device has a parallel and perpendicular beam divergence of 65 and 78 degrees, respectively. This laser is available in a small footprint QFN package with a laser aperture of 10 µm (diameter) x 40 µm (pitch) and is ideal for Access Control (IRIS/Vein Scan, Face Recognition), and Gesture Recognition applications.

 Product Specifications

    Product Details

    • Part Number :
      PLPVQ 940A
    • Manufacturer :
      OSRAM
    • Description :
      VCSEL Pulsed Laser Diode with Small Footprint QFN Package

    Applications

    • Application :
      Gesture recognition, Access Control (IRIS/Vein Scan, Face Recognition)

    General Parameters

    • Configuration :
      Single Emitter
    • Technology :
      Vertical-Cavity Surface-Emitting Laser (VCSEL)
    • Operation Mode :
      CW / Pulsed
    • Wavelength :
      932 to 948 nm
    • Output Power :
      0.5 to 0.75 W
    • Spectral Width (FWHM) :
      1.5 nm
    • Operating Voltage :
      1.5 to 2.7 V
    • Operating Current :
      0.75 A
    • Reverse Voltage :
      5 V
    • Threshold Current :
      60 mA
    • Beam Divergence Parallel :
      65 Degree
    • Beam Divergence Perpendicular :
      78 Degree
    • Package Type :
      Surface-Mount
    • Package :
      QFN
    • Rise/Fall Time :
      1 ns
    • Thermistor Resistance :
      27 K / W
    • Type :
      Free Space Laser Diode
    • Wavelength Temp. Coefficient :
      0.07 nm / K

    Temperature

    • Operating Temperature :
      0 to 60 Degree
    • Storage Temperature :
      -40 to 85 Degree
