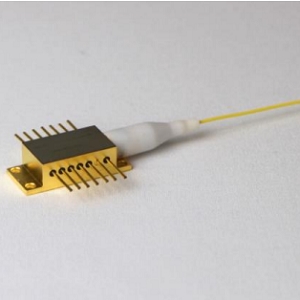

M808±0.5-3.5-F105/22-R1-TP

Laser Diode by PhotonTec Berlin
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PhotonTec Berlin.

The M808±0.5-3.5-F105/22-R1-TP from PhotonTec Berlin is a Laser Diode with Wavelength 807 to 809 nm, Output Power 3 to 3.5 W, Output Power 3 to 3.5 W, Threshold Current 0.9 to 1 A, Operating Current 4.4 to 5 A. More details for M808±0.5-3.5-F105/22-R1-TP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M808±0.5-3.5-F105/22-R1-TP
  • Manufacturer
    PhotonTec Berlin
  • Description
    808 nm Wavelength Stabilized Laser Diode with 3.0W Power

Applications

  • Application
    Solid-state laser pumping

General Parameters

  • Technology
    Volume Bragg Grating (VBG)
  • Type
    Fiber-Coupled Laser Diode
  • Wavelength
    807 to 809 nm
  • Output Power
    3 to 3.5 W
  • Output Power
    3 to 3.5 W
  • Spectral Width (FWHM)
    0.6 nm
  • Slope Efficiency
    1 W/A
  • Wavelength Tolerance
    ±1 nm
  • Threshold Current :
    0.9 to 1 A
  • Operating Current
    4.4 to 5 A
  • Operating Current
    4.4 to 5 A
  • Operating Voltage
    1.9 to 1.95 V
  • Thermistor Resistance
    10 kOhms
  • Laser Class
    Class 4
  • Package Type
    Fiber Pigtailed
  • Relative Humidity
    <75%

Physical Properties

  • Fiber core diameter
    102 to 108 µm
  • Fiber length
    48.5 to 50 cm

Connections & Interface

  • Connector
    SMA905, FC/PC

Temperature

  • Operating Temperature
    30 to 40 Degree C
  • Storage Temperature
    -20 to 80 Degree C
