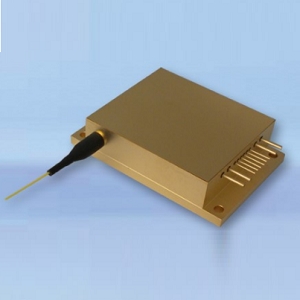

The M976±0.5-100-F105/22-D1-P from PhotonTec Berlin is a Volume Bragg Grating (VBG) Laser Diode that operates at a wavelength of 976 nm. It delivers an output power of 100 W and has a maximum spectral width (FWHM) of up to 1 nm. This laser diode has a slope efficiency of 11.8 W/A and power conversion efficiency of 45%. It has an optical fiber with a numerical aperture of 0.22, core diameter of 105 μm, and length of 2 m. This laser diode has a wavelength temp. coefficient of 0.02 nm/°C and wavelength current coefficient of 0.05 nm/A.
The M976±0.5-100-F105/22-D1-P is designed for back reflection protection for a wavelength of 1030 nm - 1100 nm with attenuation above 40 dB. It has a threshold current of 0.5 A and supports SMA connectors. This laser diode requires a DC supply voltage of 24 V and consumes 9 A of current. It is available in a module that measures 85 mm x 58 mm x 20 mm and is ideal for fiber laser pumping applications.
