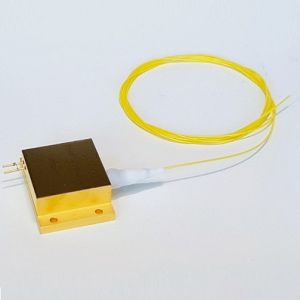

M976±0.5-30-F105/22-T4M

Laser Diode by PhotonTec Berlin
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PhotonTec Berlin.

The M976±0.5-30-F105/22-T4M from PhotonTec Berlin is a Laser Diode with Wavelength 975.5 to 976.5 nm, Output Power 28 to 30 W, Output Power 28 to 30 W, Threshold Current 0.5 A, Operating Current 9 to 10 A. More details for M976±0.5-30-F105/22-T4M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M976±0.5-30-F105/22-T4M
  • Manufacturer
    PhotonTec Berlin
  • Description
    976 nm Volume Bragg Grating (VBG) Laser diode

General Parameters

  • Technology
    Volume Bragg Grating (VBG)
  • Type
    Fiber-Coupled Laser Diode
  • Wavelength
    975.5 to 976.5 nm
  • Output Power
    28 to 30 W
  • Output Power
    28 to 30 W
  • Spectral Width (FWHM)
    <0.5 nm
  • Slope Efficiency
    3.8 W/A
  • Wavelength Tolerance
    ±0.5 nm
  • Wavelength Temp. Coefficient
    0.02 nm/Degree C
  • Power Conversion Efficiency
    0.5
  • Threshold Current :
    0.5 A
  • Operating Current
    9 to 10 A
  • Operating Current
    9 to 10 A
  • Operating Voltage
    6.25 to 6.7 V
  • Laser Class
    Class 4
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    Fiber Pigtailed
  • Relative Humidity
    <75%

Physical Properties

  • Fiber core diameter
    102 to 108 µm
  • Fiber length
    1 m, 2 m

Temperature

  • Operating Temperature
    30 Degree C (Case baseplate)
  • Storage Temperature
    -20 to 80 Degree C
